METAL EQUIPMENT METAL PERIPHERAL EQUIPMENT
FANUC Logo

FANUC
ROBODRILL-Compact Machining Center

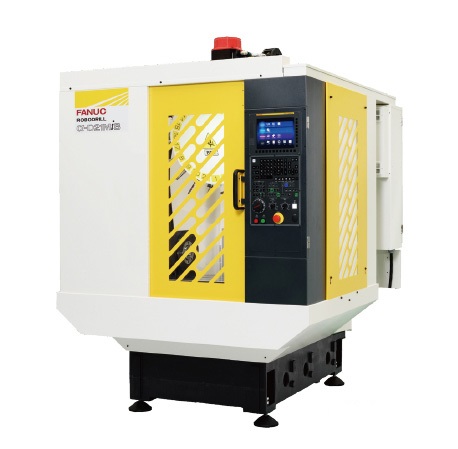

FANUC ROBODRILL Compact Machining Center

ROBODRILL-Compact Machining Center

ROBODRILL-Compact Machining Center

High-Performance of Machining

  1. High-speed, high-accuracy, and high-power to achieve high production performance.
  2. Achieving high yield of work-piece by stable machining.

High operation rate

  1. Achieving long operation life by high-reliability.
  2. Prevention of trouble by preventive maintenance function.
  3. Minimizing down time by high-maintainability.

High availability

  1. High scalability, easy control of external peripherals.
  2. Excellent automation compatibility, achieving high integration with robots.

Applicaion

  1. Widely applied to the industries of machinery, automobile parts, 3C precision parts, precision molds, etc., based on strong spindle and advanced CNC control system.

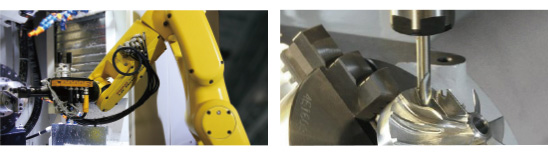

FANUC Five axis machining Five-axis machining

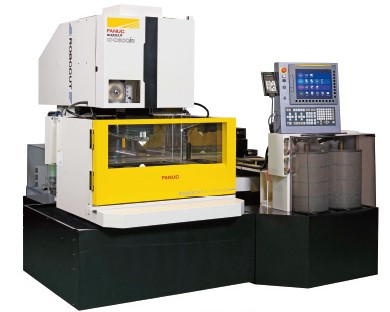

FANUC ROBOTCUT Wire ElectricalDischarge Machine

ROBOTCUT-Wire ElectricalDischarge Machine

ROBOTCUT-Wire ElectricalDischarge Machine

High Performance of Cutting

  1. New mechanical structure, new discharge devices, and new discharge control to provide high speed, high precision, and high-quality cutting
  2. Achieve thermal displacement compensation function to provide stable cutting and various functions to adjust shapes easily
  3. High precision rotary table ROBOCUT CCR to expand the applications

High operation rate

  1. Using the highly reliable automatic wire threading system AWF2 to achieve continuous unmanned operation.
  2. Utilizing consumable management and maintenance guidance functions to assist in daily maintenance.
  3. Production and quality information management tool: RoboCUT-LINKi.

High availability

  1. Enhancing CNC screen functionality through the new user interface iHMI.
  2. Advanced operation guidance features from FANUC.

Application

  1. Widely used in industries such as precision molds, medical, and the manufacturing of superhard materials.

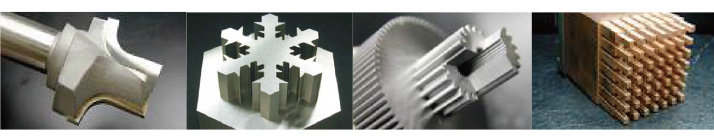

FANUC PCD tools Stamping molds Clock gears Electrode for electric spark discharge PCD tools / Stamping molds / Clock gears / Electrode for electric spark discharge
FANUC Nano Ultra Precision Machine

Nano Ultra-Precision Machine

Nano Ultra-Precision Machine

High performance

  1. A 5-axis simultaneous milling machine achieves stable ultra-precision machining by employing hydrostatic bearings.
  2. Utilizing FANUC CNC and servo technology, achieving command and control precision of 0.1nm.

High operation rate

  1. FANUC's standard CNC and servo technology ensure high reliability.
  2. Utilizing non-contact bearings.
  3. Simple mechanical structure, allowing for quick replacement of components during maintenance.

High availability

  1. Smart M-Setup achieves excellent operability.
  2. Smart M-Form enables online measurement.
  3. CE and KCs marking have been obtained.

Application

  1. Widely used in the optical field (LED lens cores, lens array cores, Fresnel lens cores), automotive field (automotive head-up displays, lamp moldings, etc.), and precision parts in the watch and jewelry field (watch molds, watch components, smartphone cover molds, etc.).
FANUC Scribing machining Milling machining High speed scribing machining Scribing machining (five axes) / Milling machining (five axes) / High-speed scribing machining
FUJI Logo

FUJI

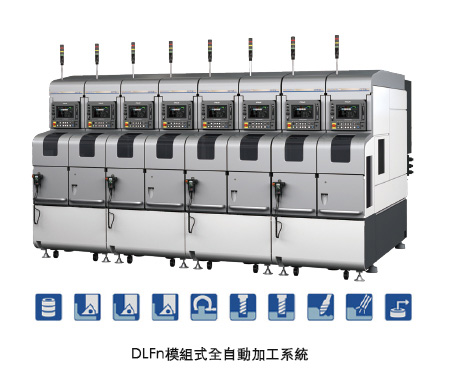

DLFn Modular Full-Automated Machining System

FUJI DLFn Modular Full Automated Machining SystemDLFn Modular Full-Automated Machining System

DLFn Modular Full-Automated Machining System

  1. Modular structure: 1 base can accommodate 2 mechanical modules, allowing flexible configurations on the base for different production lines.
  2. Multi-axis automatic robotic part transfer, with loading and unloading in as short as 9.6 seconds, saving time.
  3. A 50% reduction in the length of the production line, increasing production output per unit area.
  4. The production modules can be easily moved forward for efficient line changeovers.
  5. FUJI's innovative UNICORN controller provides unified operability, achieving ease of operation.
  6. Fully automated continuous production reduces labor costs.

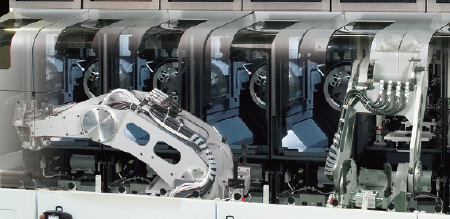

FUJI automatic line configuration and save production cycles Integral Fuji Robots allow fully automatic line configuration and save production cycles.
FUJI machine module and base module

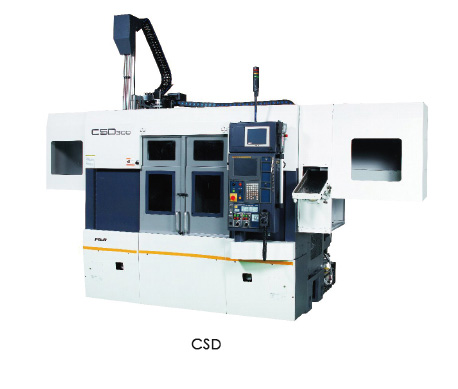

FUJI SCDSCD

CSD

Features

  1. A space-saving dual-spindle lathe that significantly increases productivity per unit space.
  2. Excellent thermal displacement performance and high-rigidity slideways capable of handling heavy cutting.
  3. On a space-saving base with thermal deformation prevention, high-rigidity slideways, a zero-core spindle head, and a high-speed indexing turret are installed.
  4. Featuring a uniquely rigid saddle to ensure stable machining quality.
  5. Equipped with a high-speed 3-axis gantry-type robotic arm, reducing time wastage in workpiece loading and unloading, and shortening processing cycles.
  6. The robotic arm control utilizes the FUJI-developed MAX-SP1 controller, known for its high reliability, ensuring stable and high-speed workpiece supply.

Applicaion

  1. Based on a powerful spindle and advanced CNC control system, it is widely used in industries such as machinery, automotive components (engines, transmissions, steering systems, power transmission systems, and walking systems).
TORNOS Logo

TORNOS
High-end Lathe from Switzerland

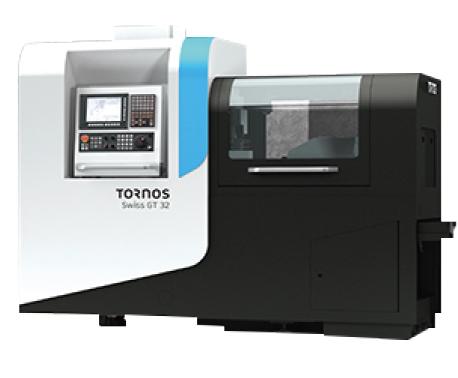

TORNOS Swiss GT Series Swiss GT Series：  The best recommended model for long and short turning parts production.

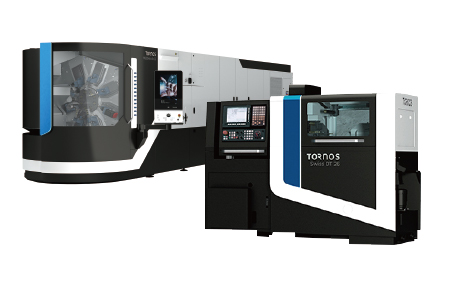

TORNOS MultiSwiss Series and Swiss DT Series
Left： MultiSwiss Series：Equipped with 6 or 8 movable spindles, significantly reducing processing time.
Right： Swiss DT Series：Simple and easy to use, significantly improving production efficiency.
Having a professional design and development department, we provide customers with the best design services; advanced equipment and specialized manufacturing techniques enable us to offer customers the highest quality product solutions.

Advantages

  1. Pioneering the field of heart-type spindle technology (Swiss-type automatic lathes), TORNOS boasts unparalleled professional expertise.
  2. Precision and high-quality machining of product components.
  3. Specialized product lines that cater to customer needs, offering solutions for both simple and highly complex parts, low-volume, and mass production.
  4. High-precision machining centers with a processing diameter range of 1-36mm; user-friendly interface for quick changeovers, maximizing production efficiency.
  5. Multi-spindle machining solutions designed to surpass excellence.

Applicaion

  1. Aerospace, electronics, automotive, medical, micro-machining, and parts processing industries.
SHIBAURA MACHINE Logo

SHIBAURA MACHINE
UVM Series

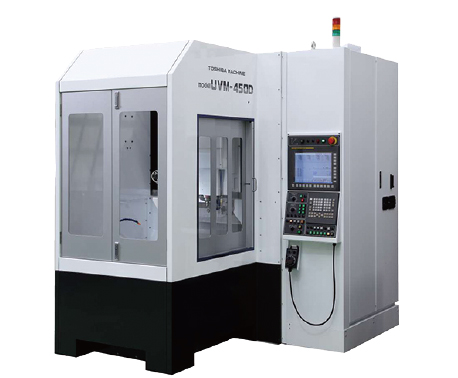

SHIBAURA MACHINE UVM-450D UVM-450D

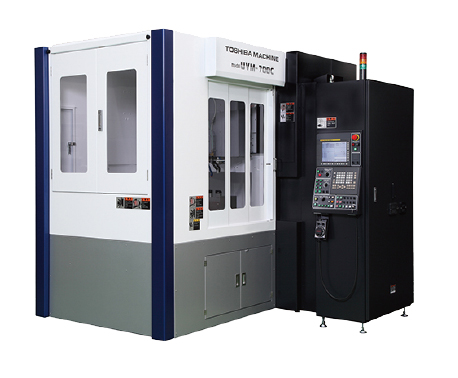

SHIBAURA MACHINE UVM-700CUVM-700C

Advantages

  1. Shorten processing time: High-speed machining with a 60,000 RPM spindle.
  2. Reduce maintenance costs: Non-contact bearing spindles and linear motors.
  3. Extend tool life: High precision and continuous high-speed rotation.
  4. Shorten polishing time: Significant improvement in surface roughness.
  5. Suitable for various machining methods: Various optional accessories enable a wide range of processing capabilities.

Applicaion

  1. Optical lens molds
  2. Molds for mobile phone-related components
  3. Precision molds
  4. Precision parts machining
  5. Molds for automotive lighting components
SHIBAURA MACHINE LED lens array mold

LED lens array mold

SHIBAURA MACHINE LED lens mold

LED lens mold

SHIBAURA MACHINE Surface in free shape 3D

Surface in free shape 3D

SHIBAURA MACHINE Surface in free shape 2.5D

Surface in free shape 2.5D

SHIBAURA MACHINE Fresnel lens mold

Fresnel lens mold

TWISTER Logo

TWISTER
5-Axis CNC Gantry-Style Machining Center Series

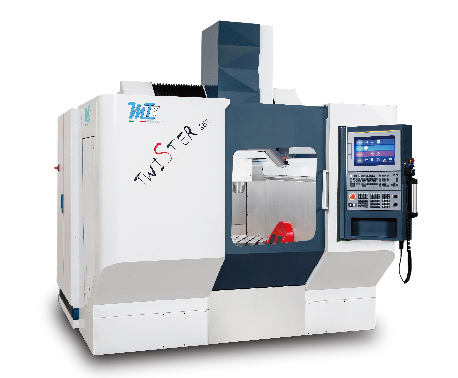

TWISTER 5 Axis CNC Gantry Style Machining Center SeriesTWISTER 5-Axis CNC Gantry-Style Machining Center Series

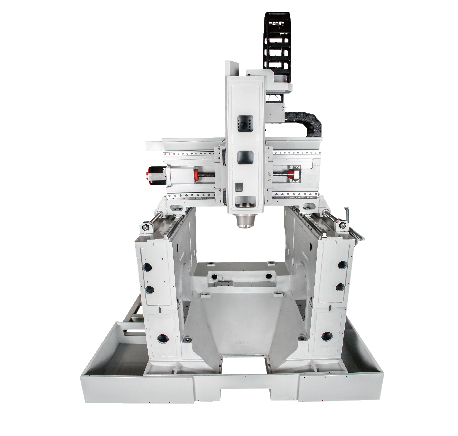

TWISTER High vibration damping capacity of cast iron baseHigh vibration damping capacity of cast iron base.

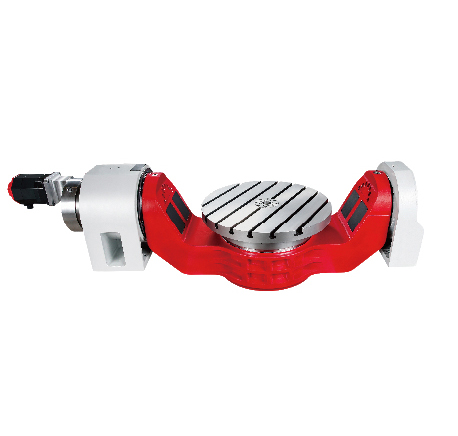

TWISTER Swing arm A/C axis rotary worktableSwing-arm A/C axis rotary worktable.
Italian Design, Research, Development,and Application

Advantages

  1. The Italian research and development team focuses on the design and production of high-speed spindles, five-axis machines, gantry-type, and column-type mechanisms. They are dedicated to ongoing research and innovation, aiming to provide customers with high-cost performance and high-added-value processing tools.
  2. TWISTER is a new generation gantry-type five-axis high-speed processing equipment
  3. High-performance built-in spindle paired with a cradle-type A and C-axis rotating worktable.
  4. High-rigidity structural design, driven by high-precision servo motors.
  5. Suitable for the processing of irregular and complex curved surfaces.
  6. Additionally, there are fixed-column gantry-type five-axis/five-face machining centers, high-speed horizontal/vertical machining centers, and high-speed mold machining centers to meet various processing needs.

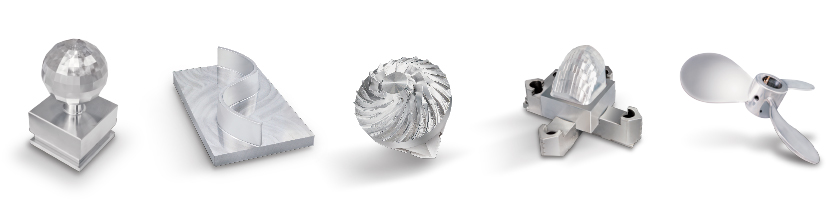

Machining examples

TWISTER Machining examples
NTG Logo

NTG
Ion-beam Finishing Machine

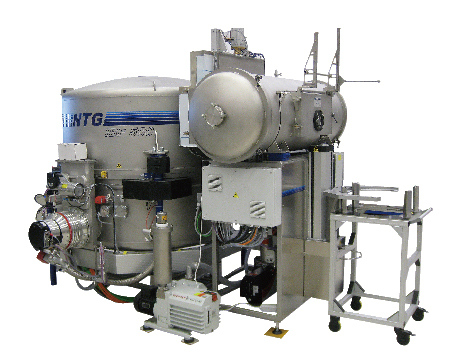

NTG NTG-IBF500 NTG-IBF500

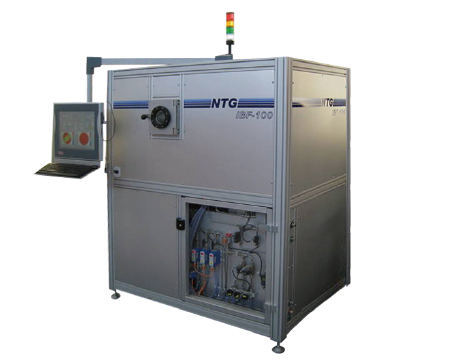

NTG NTG-IBF200 NTG-IBF200

IBF-100 / IBF-200 / IBF-300 / IBF-450 / IBF-500 Advantages

  1. Germany's NTG company is a specialized manufacturer of ion beam polishing machines, with nearly 20 years of experience in the research and production of ion beam processing machines.
  2. The IBF equipment utilizes ion beams to perform nano-level processing correction on the surface of parts, achieving ultra-high surface precision.
  3. It's a non-contact process, leaving no traces and causing no stress on the surface.
  4. It can process complex surfaces and is widely applicable to various materials.
  5. The processing cost is much lower than that of magnetic rheology, with higher efficiency, and there is almost no consumable usage.

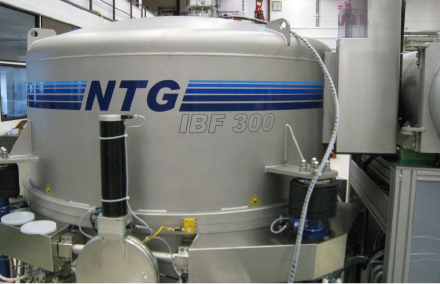

NTG NTG-IBF300 NTG-IBF300

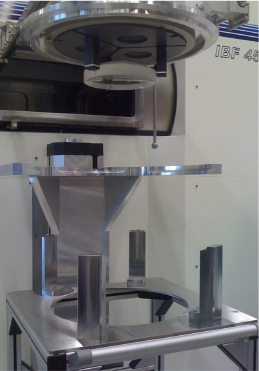

NTG NTG-IBF450 NTG-IBF450
